King's Quest IV: The Perils of Rosella - Interaction Documentation

A comprehensive documentation of all game interactions extracted from the decompiled SCI (Sierra's Creative Interpreter) source code. This project documents the logic, conditions, state changes, and dependencies for recreating King's Quest IV as a modern point-and-click adventure.

Repository Structure

/
├── rooms/                          # Room-specific documentation (one directory per room)
│   ├── kq4-001-beach/             # Beach (starting room)
│   │   ├── 001-beach.md           # Room documentation
│   │   ├── pic_001_visual.png     # Background visual
│   │   ├── pic_001_control.png    # Control (walkable areas)
│   │   └── pic_001_priority.png   # Priority (z-ordering)
│   ├── kq4-002-meadow/            # Meadow (with Satyr/Pan)
│   ├── kq4-010-forest-path/      # Forest Path
│   └── ...                        # One directory per room
├── docs/scripts/                   # Non-room script documentation
│   └── non-room-scripts.md        # Core, region, and interaction scripts
├── KQ4_v1.006.004_int0.000.502_SRC_(6)/
│   └── src/                        # Decompiled SCI scripts
│       ├── Main.sc                 # Game engine & global handlers
│       ├── Game.sc                 # Core game classes
│       ├── Feature.sc              # Object interaction framework
│       ├── InvI.sc                 # Inventory system
│       ├── rm1.sc - rm99.sc        # Room scripts
│       └── *.sc                    # Various utility scripts
└── README.md                       # This file

Source Code Overview

File Types

• .sc files: Sierra Script source code (main logic)
• .sco files: Compiled script object files (not human-readable)
• game.sh: Header file with game constants and defines

Key Source Files

File	Purpose
Main.sc	Global game state, inventory, death handlers, sound management
Game.sc	Core Game class, save/load system, event handling
Feature.sc	Base classes for interactive objects (Feature, View, Actor)
InvI.sc	Inventory item definitions and display logic
Class_255_0.sc	Low-level system procedures and kernel functions
rm##.sc	Individual room scripts (rooms 1-99)
*Reg.sc	Region scripts (shared logic for multiple rooms)

Room Script Anatomy

Each room script (rm##.sc) typically contains:

Room## of Rm                    # Room class definition
├── Properties
│   └── picture                 # Background image number
├── Methods
│   ├── init()                  # Room initialization
│   │   ├── north/south/east/west  # Exit directions
│   │   ├── horizon             # Walkable area boundary
│   │   ├── setRegions:         # Apply shared region logic
│   │   ├── Props/Actors/Views  # Interactive objects
│   │   └── gEgo positioning    # Player start position
│   ├── doit()                  # Per-frame logic (rarely used)
│   ├── handleEvent()           # Text parser input handling
│   └── dispose()               # Cleanup when leaving room
└── Instances
    ├── Scripts                 # Multi-step sequences
    ├── Props                   # Animated objects
    ├── Views                   # Static scenery
    └── Sounds                  # Audio effects

Game Systems

Parser Commands

The original game uses a text parser with verb-noun structure:

• Said 'look/grass' - Player typed "look at grass"
• Said 'use/key' - Player typed "use key"
• Said 'take/diamond' - Player typed "take diamond"
• Said '[<around][/room]' - "look around" or "look room"

State Management

Global variables track game state:

Variable	Purpose
gEgo	Player character object
gRoom	Current room instance
gPrevRoomNum	Previous room number
gInv	Inventory collection
global100	Unknown flag (weather/time?)
global101	Room has been visited
global116	Story progression state
global105	Multi-path room state

Inventory System

Items referenced by index in gInv at: ##:

Index	Item
1	Diamonds
17	Fishing pole
...	(others documented per-room)

Message System

Text displayed via Print scriptNum messageNum:

• Print 1 0 = Message 0 from script 1
• Messages stored separately in RESOURCE files
• To be extracted and added to room documentation

Looking Up Text in the Strings Directory

Message text is extracted and stored in the strings/ directory:

File Pattern	Contents
strings/script_XXX_strings.txt	Script-specific strings (room names, object names)
strings/text_XXX.txt	In-game dialog and message text

To look up a message:

1. Identify the script number from the Print command (e.g., Print 2 1 = script 2, message 1)
2. Open strings/text_XXX.txt where XXX matches the script number
3. Find the entry with the matching message number (e.g., [0001])

Example:

Print 2 1  →  Look in strings/text_002.txt, line [0001]
Result: "You see a river in the distance to the north."

Note: Message numbers in the code start from 0 and are displayed in brackets (e.g., [0001] = message 1).

Room Documentation Format

Each room file follows this structure:

# Room ##: [Room Name]

## Overview
- **Room Number**: ##
- **Picture**: ###
- **Region**: [Beach/Forest/Castle/etc.]
- **Exits**: North→#, South→#, East→#, West→#

## Objects

### [Object Name]
- **Type**: Prop/View/Actor
- **Position**: (x, y)
- **View**: ### (sprite/animation resource)
- **States**: [list of possible states]

#### Interactions

**Look**:
- Condition: [when visible]
- Text: "Message from game"
- Logic: [simplified state check]

**Use [Item]**:
- Condition: [inventory check]
- Effect: [what happens]
- State Change: [global or local variable changes]

## NPCs

### [Character Name]
- **Type**: Actor
- **Behavior**: [wandering, stationary, scripted]

#### Dialogue
- **Greeting**: [initial interaction]
- **Topics**: [what player can ask about]
- **Conditions**: [when available]

## Scripts

### [Script Name]
- **Trigger**: [what starts it]
- **Steps**: [sequence of actions]
- **State Changes**: [what it modifies]

## Walkthrough Integration

- **Critical Path**: [essential interactions]
- **Optional**: [side content]
- **Deaths**: [ways to die in this room]

Conversion Notes for Point-and-Click

When adapting to a KQ5-style interface (walk, look, hand, talk, inventory):

1. Walk: Automated - player clicks destination, character walks there
2. Look: Maps to Said 'look/object' commands
3. Hand: Maps to Said 'use/object', Said 'take/object', Said 'open/object'
4. Talk: Maps to Said 'talk/person' or Said 'ask/person/about'
5. Inventory: Click item, then click target (replaces Said 'use/item/on/target')

Simplifications Made

• Auto-walking: No manual positioning needed
• Context-sensitive: Combine look/take/use based on object type
• Smart defaults: Auto-select appropriate verb for known object types
• Inventory drag: Drag item to target instead of typing commands

Message Extraction Status

Status	Description
⏳ Pending	Text resources not yet extracted from RESOURCE.### files
📝 Documented	Text added to room files

Text messages referenced as Print scriptNum messageNum will be extracted from the game's RESOURCE files and added to each room's documentation.

Generating Room Visuals

Each room directory contains rendered PNG images of the game's PIC resources:

Using sci_pic_render

./sci_pic_render <room_number> "<path_to_game>" <output_directory>

Example:

./sci_pic_render 1 "King's Quest IV - The Perils of Rosella (1988)/KQ4" rooms/kq4-001-beach

This generates three PNG files in the room directory:

• pic_###_visual.png - The background visual
• pic_###_control.png - Control (walkable areas)
• pic_###_priority.png - Priority (z-ordering)

Directory Structure

rooms/
├── kq4-001-beach/
│   ├── 001-beach.md           # Room documentation
│   ├── pic_001_visual.png    # Background
│   ├── pic_001_control.png   # Walkable areas
│   └── pic_001_priority.png  # Z-ordering
└── kq4-010-forest-path/
    └── ...

Contributing

When adding room documentation:

1. Read the corresponding rm##.sc file
2. Document all handleEvent interactions
3. Note all Props, Views, and Actors
4. Track state dependencies (global variables)
5. Include original text when available
6. Describe simplified logic for point-and-click adaptation

Progress

Room Number	Room Description	Status
001	Beach	DONE

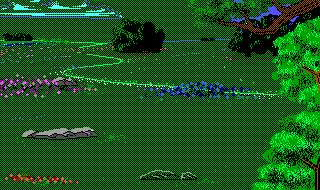

002	Meadow (with Satyr/Pan)	DONE

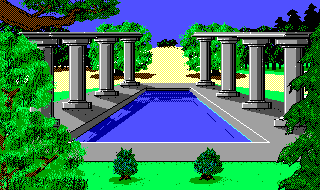

003	Fountain Pool	DONE

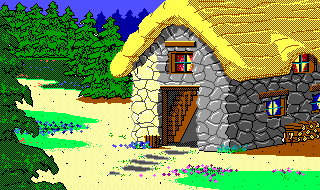

004	Ogre's Cottage Exterior	DONE

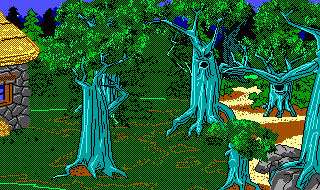

005	Forest Grove	DONE

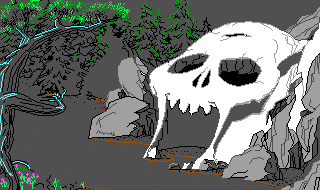

006	Cave Entrance	DONE

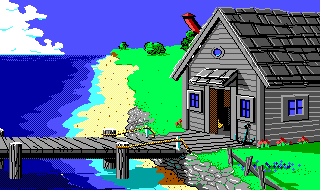

007	Fisherman's Shack Exterior	DONE

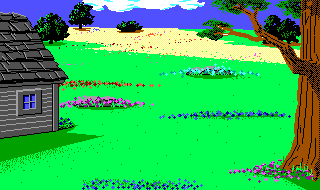

008	Back of Fisherman's Shack	DONE

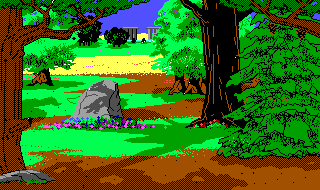

009	Shady Wooded Area	DONE

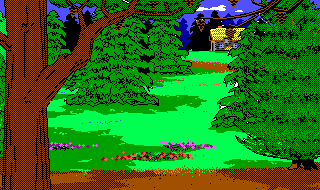

010	Forest Path	DONE

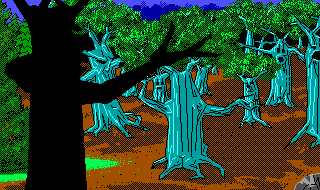

011	Enchanted Grove	DONE

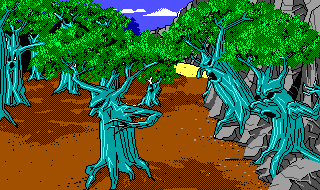

012	Haunted Forest	DONE

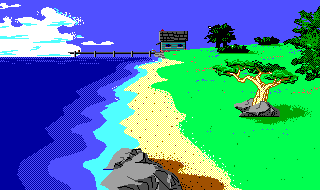

013	Beach	DONE

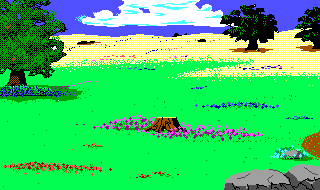

014	Green Meadow	DONE

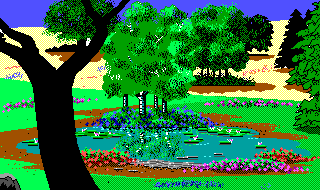

015	The Frog Pond	DONE

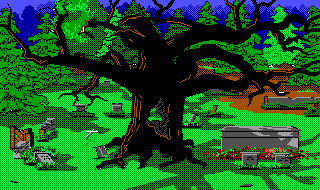

016	Graveyard	DONE

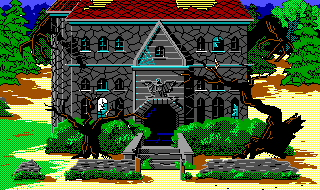

017	Spooky House Exterior	DONE

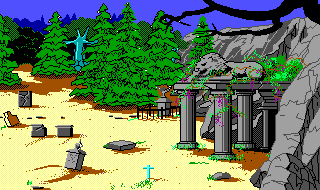

018	Cemetery	DONE

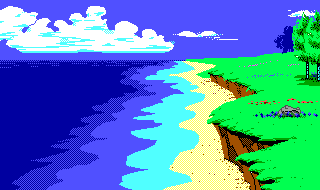

019	Coastal Cliffs	DONE

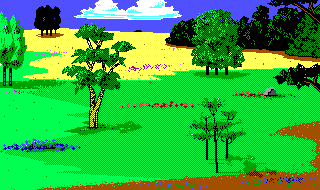

020	Meadow	DONE

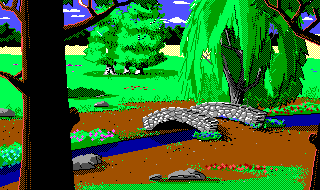

021	Bridge Over Stream	DONE

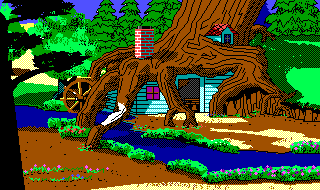

022	Gnome's Cottage	DONE

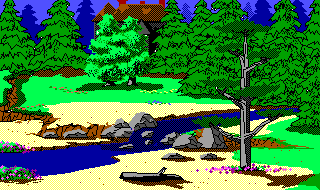

023	Forest Path with Cottage	DONE

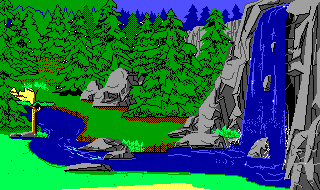

024	Waterfall and Pool	DONE

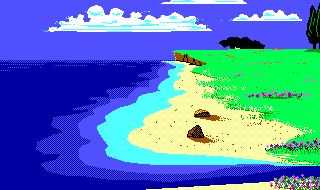

025	Beach at River Delta	DONE

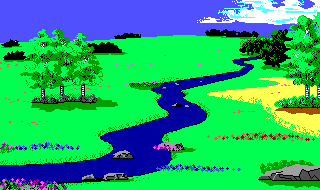

026	River Meadow	DONE

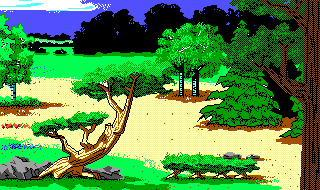

027	Forest Path	DONE

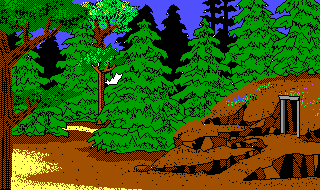

028	Mine Entrance	DONE

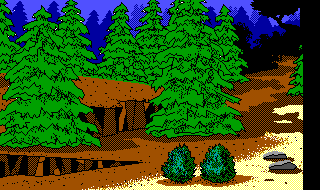

029	Dense Forest	DONE

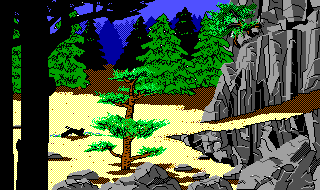

030	Mountain Pass	DONE

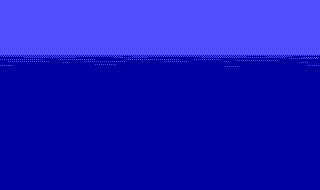

031	Open Ocean	DONE

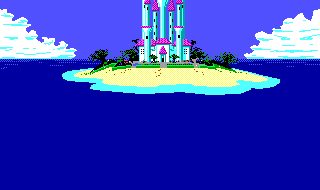

032	Ocean Near Island	DONE

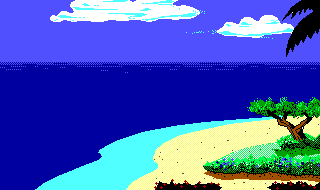

033	Enchanted Island Beach	DONE

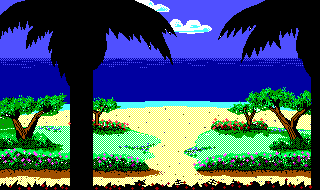

034	Island Beach	DONE

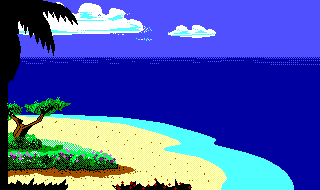

035	Island Beach	DONE

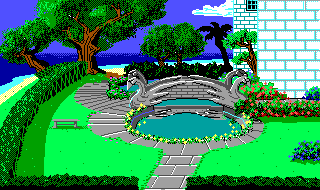

036	Island Garden Pond	DONE

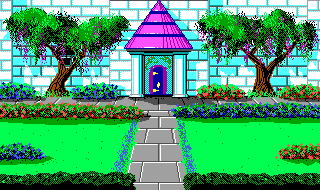

037	Fairy Island	DONE

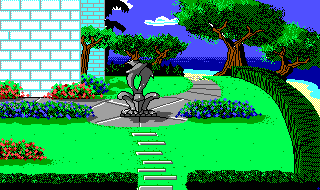

038	Island Garden	DONE

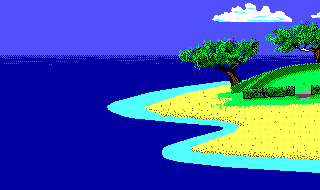

039	Island Beach	DONE

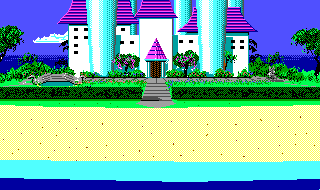

040	Island Beach (East)	DONE

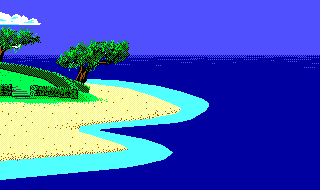

041	Island Shore	DONE

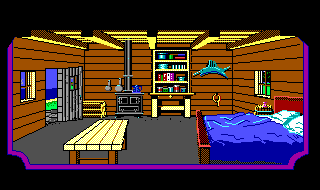

042	Fisherman's Cottage Interior	DONE

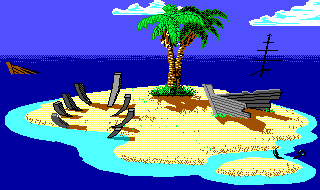

043	Desert Island	DONE

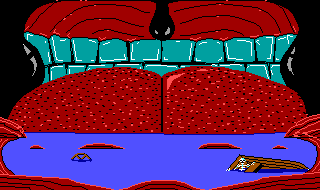

044	Inside Whale	DONE

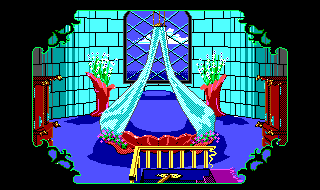

045	Genesta's Bed Chamber	DONE

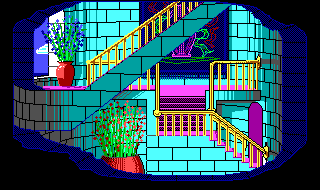

046	Tower Stairway	DONE

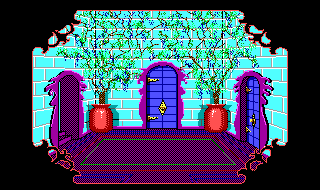

047	Genesta's Palace Entry Hall	DONE

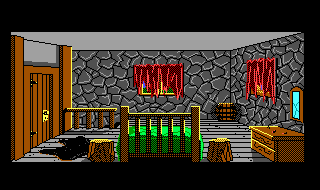

048	Ogre's Bedroom	DONE

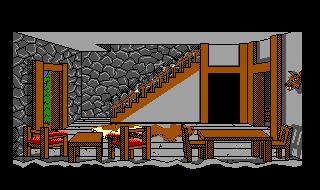

049	Ogre's Cottage	DONE

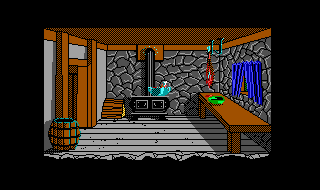

050	Ogress's Kitchen	DONE

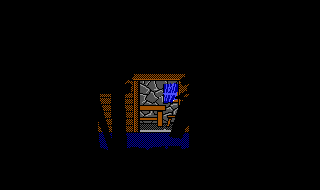

051	Ogre's Closet	DONE
052		N/A (doesn't exist)

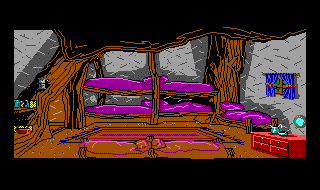

053	Seven Dwarfs' Bedroom	DONE

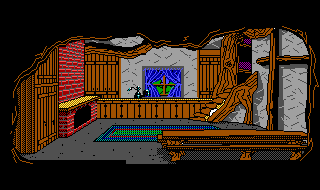

054	Seven Dwarfs' Cottage	DONE

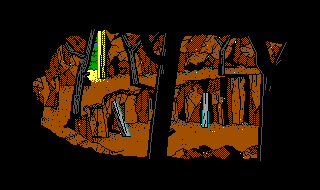

055	Seven Dwarfs Diamond Mine	DONE

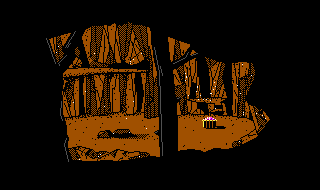

056	Seven Dwarfs' Diamond Mine (West)	DONE

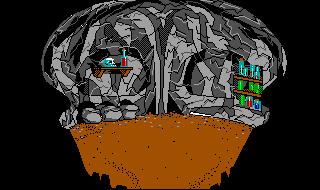

057	Witches' Cave	DONE

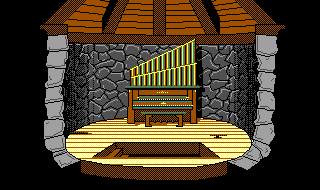

058	Tower Organ Room	DONE

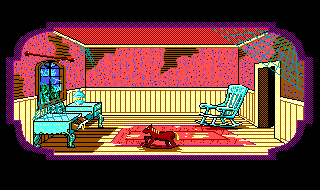

059	Baby Nursery	DONE

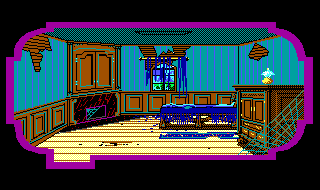

060	Bedroom	DONE

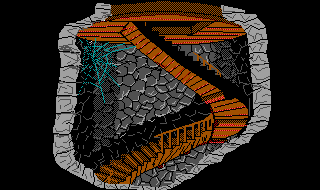

061	Tower Stairs	DONE

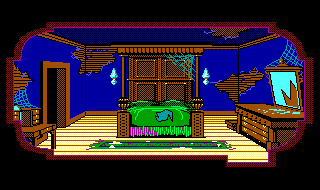

062	Bedroom	DONE

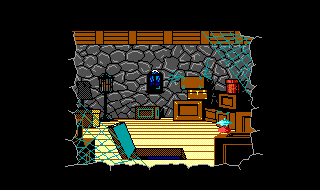

063	Attic	DONE

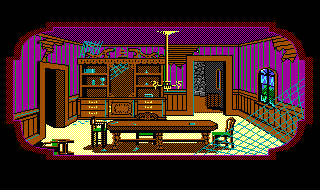

064	Old Dining Room	DONE

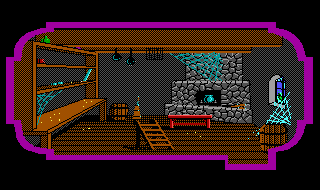

065	Old Kitchen	DONE

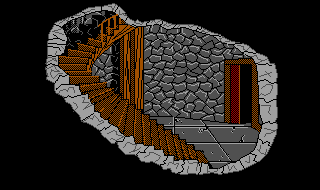

066	Secret Tower	DONE

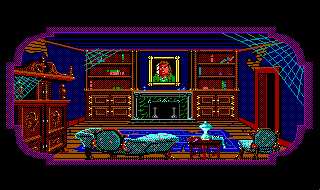

067	The Parlor	DONE

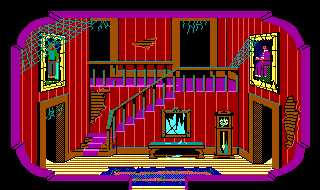

068	The Foyer	DONE

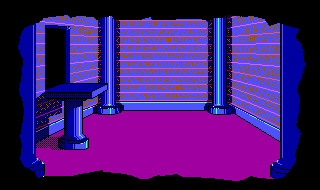

069	The Crypt	DONE

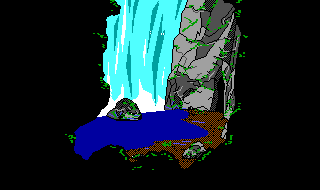

070	Waterfall Cave	DONE

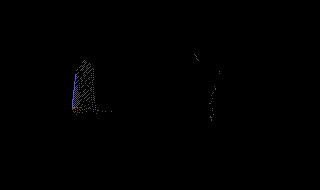

071	Cave Entrance	DONE
072	Dark Cave Passage	DONE

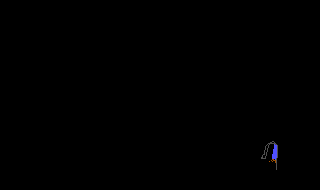

073	Cave Exit	DONE
074	Troll Cave	DONE
075	Troll Cave Passage	DONE

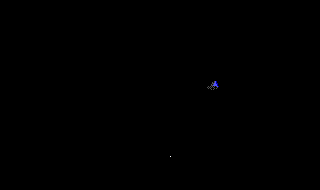

076	Dark Chasm	DONE

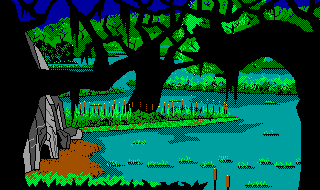

077	Swamp	DONE

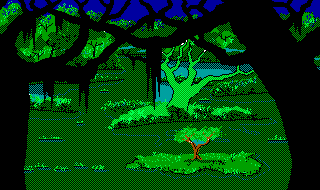

078	Swamp Island	DONE

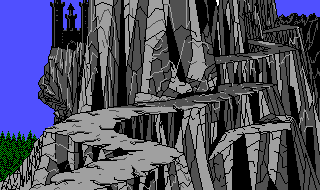

079	Mountain Path to Dark Castle	DONE

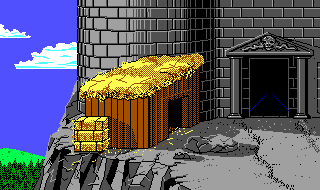

080	Lolotte's Castle Entrance	DONE

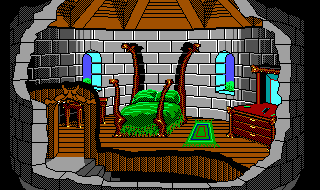

081	Edgar's Tower Bedroom	DONE

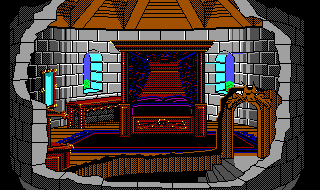

082	Lolotte's Tower Bedroom	DONE

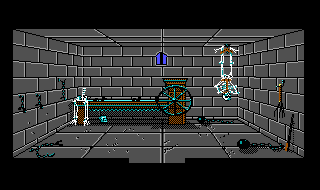

083	Castle Dungeon Cell	DONE
084	Cottage Front	DONE

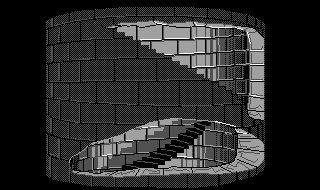

085	Dark Tower Stairs	DONE

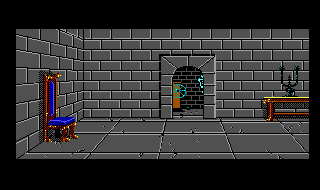

086	Dim Hallway (West End)	DONE

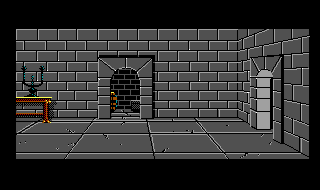

087	East End of Hallway	DONE

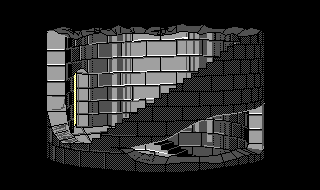

088	Stone Tower Stairs	DONE

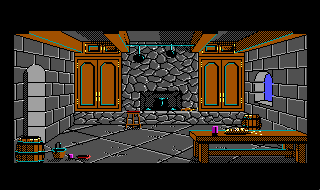

089	Castle Kitchen	DONE

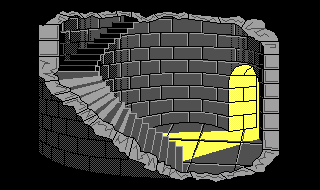

090	West Tower Bottom	DONE

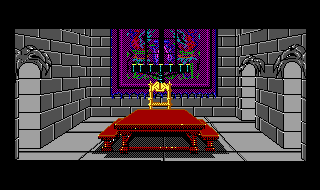

091	Castle Dining Room	DONE

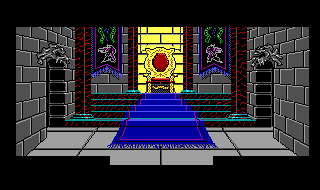

092	Lolotte's Throne Room	DONE
093	Bottom of East Tower	DONE

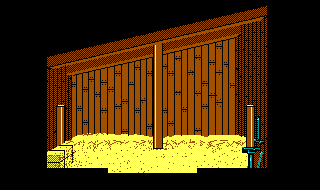

094	Unicorn Stable	DONE

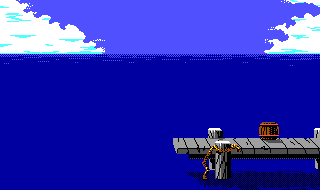

095	Fisherman's Pier	DONE
096		N/A (doesn't exist)
097		N/A (doesn't exist)
098	Transitional Room	DONE
099	Transitional Room	DONE

Non-Room Scripts

In addition to room-specific documentation, this project also documents the game's non-room scripts including core system scripts, region scripts, and interaction scripts.

Category	Description	Documentation
Core System	Main.sc, Game.sc, Feature.sc, InvI.sc, Sound.sc, etc.	Non-Room Scripts
Region Scripts	BeachReg.sc, Forest Region.sc, GhostWander.sc, etc.	Non-Room Scripts
Interaction Scripts	PlayFlute.sc, ShootBow.sc, ReadBook.sc, etc.	Non-Room Scripts
Special/Cutscene	Intro.sc, CopyProtect.sc, EndMusic.sc	Non-Room Scripts

Credits

• Original Game: Sierra On-Line (1988)
• Decompilation: Unknown decompiler tools
• Source Code: King's Quest IV v1.006.004
• Documentation: Created for remake project

License

This documentation is for educational and preservation purposes. King's Quest IV is a trademark of Sierra On-Line/Activision.
